Agent

The pi orchestrator

Markwork can orchestrate an external harness: a kanban card assigned to @pi is worked on by pi in another project folder, for example a code repo, not in the Markwork work folder.

Animation of a kanban board: @pi cards are assigned, one works and one queues, both finish to Review, then a third card waits for an answer — @pi cards: assigned, working and queued, finished to Review, then waiting for an answer

Assigning cards

---
layout: board
project: web-ecommerce         ← the default project of the board
---

## Plan
- [ ] Checkout with QRIS @pi #feature
- [ ] Test the cart @pi #project/shop-admin     ← the project tag wins over the frontmatter

Write @pi in the card title, or fill in Assigned to in the card edit dialog.
Right-click the card → Work on it with pi.
The project is taken from the #project/name tag or from the board frontmatter project: name. The project folder is asked for once and then remembered in the settings; a card without a project is given a tag from the name of its folder.

When it starts, the card moves to the In Progress list. When it finishes, it moves to Review with the note ↳ pi done …: summary. If it fails, the card stays where it is with the note ↳ pi failed …: reason.

Notes as context

Pi works in the project folder, so it cannot read the notes in the Markwork work folder. Link the notes on the card with [[ ]], and Markwork copies their contents into the prompt.

- [ ] Checkout with QRIS [[Spec#Payment]] @pi
  Follow the decisions in [[Meeting Notes]].

Links in the title and in the notes of the card are both included, at most 10 per card. The names are looked up with the same rules as Ctrl+click in the editor.
[[Note#Section]] only copies the part under that heading, up to the next heading of the same level.
The contents go into the Related notes from Markwork section of the prompt, wrapped in a code block. Every note is cut at 8,000 characters, and the total is 24,000 characters. A note that is not found is still named, so that pi knows something is missing.
An open document is read from its editor, so unsaved edits are included.
The complete prompt, including the contents of the notes, is visible in the pi log.
The contents of the notes are taken at Work on it with pi. Reply to pi continues the same session without copying them again.

On the board, a link in a card title can be clicked to open its note, and a link in the notes of a card is shown as a ↗ name row below the chip. The notes field in the card edit dialog suggests names when you type [[.

Card status

Chip	Meaning
◇	Assigned
◌	Queued: the same project is being worked on by another card
●	Working
⏸	Waiting for your answer
✓ / ✕ / ■	Done / failed / stopped

One project folder is worked on by one harness at a time; other cards queue and start automatically.

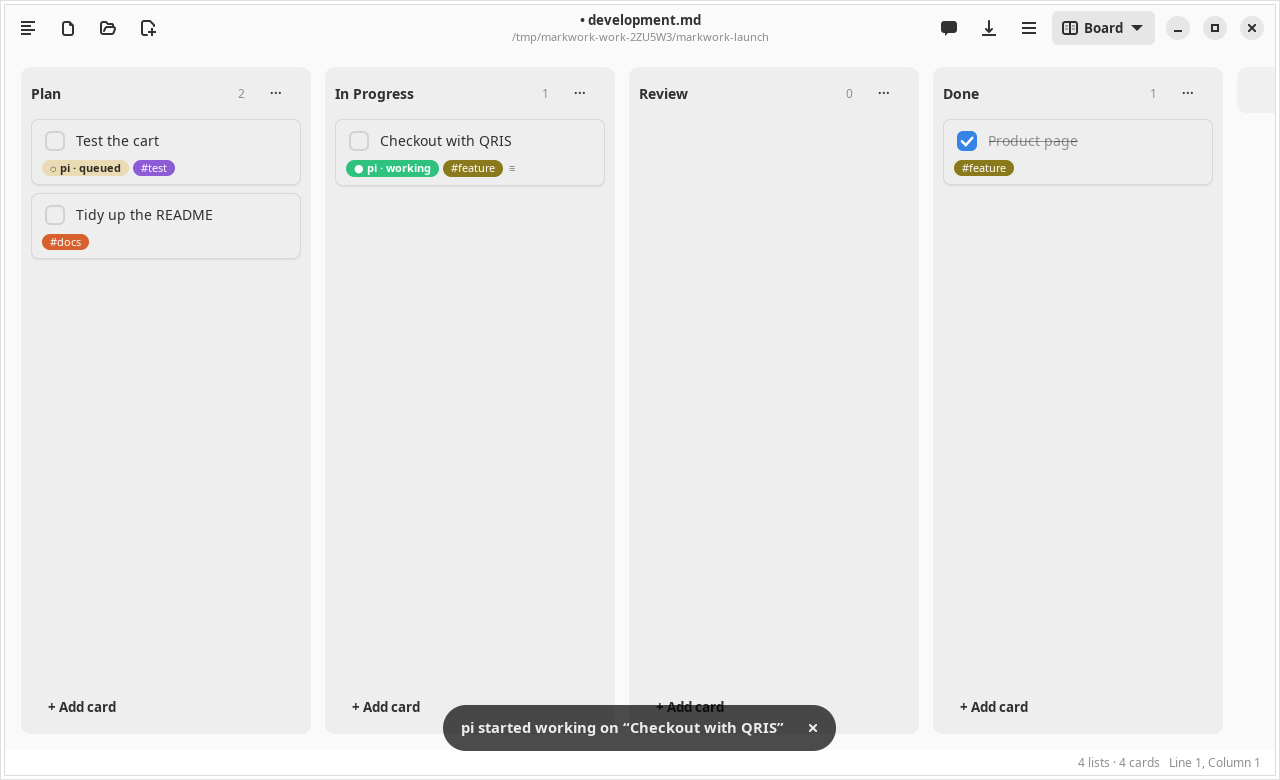

A kanban board with the card Checkout with QRIS showing pi working in In Progress and Test the cart showing pi queued in Plan — One card works, another card in the same project queues

Answering pi

Pi runs in RPC mode, so its conversation can be continued from Markwork:

Questions. When the answer of pi ends with ?, the card becomes ⏸ and stays in In Progress. Right-click → Answer pi… opens the question with an answer box.
Permission and input. A pi extension that asks for permission (e.g. a confirmation before rm -rf) appears in the same dialog: Allow/Deny, a choice, or an input.
Later leaves pi waiting; End without replying closes its session.
Steer pi… while pi works: the guidance is received before the next step, without stopping the work.
Reply to pi… after it finishes: continues the same pi session so the card is worked on again.

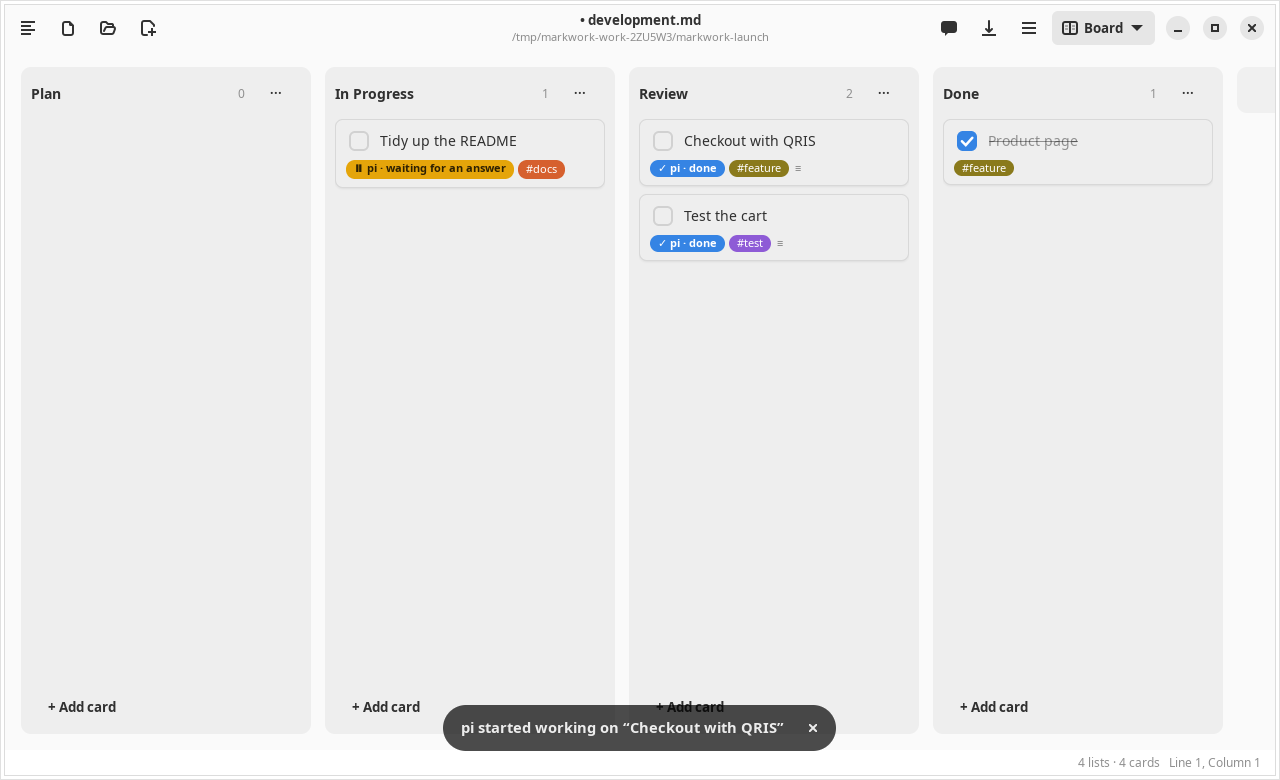

A kanban board: the card Tidy up the README shows pi waiting for an answer in In Progress, two other cards finished in Review — A card waiting for an answer stays in In Progress

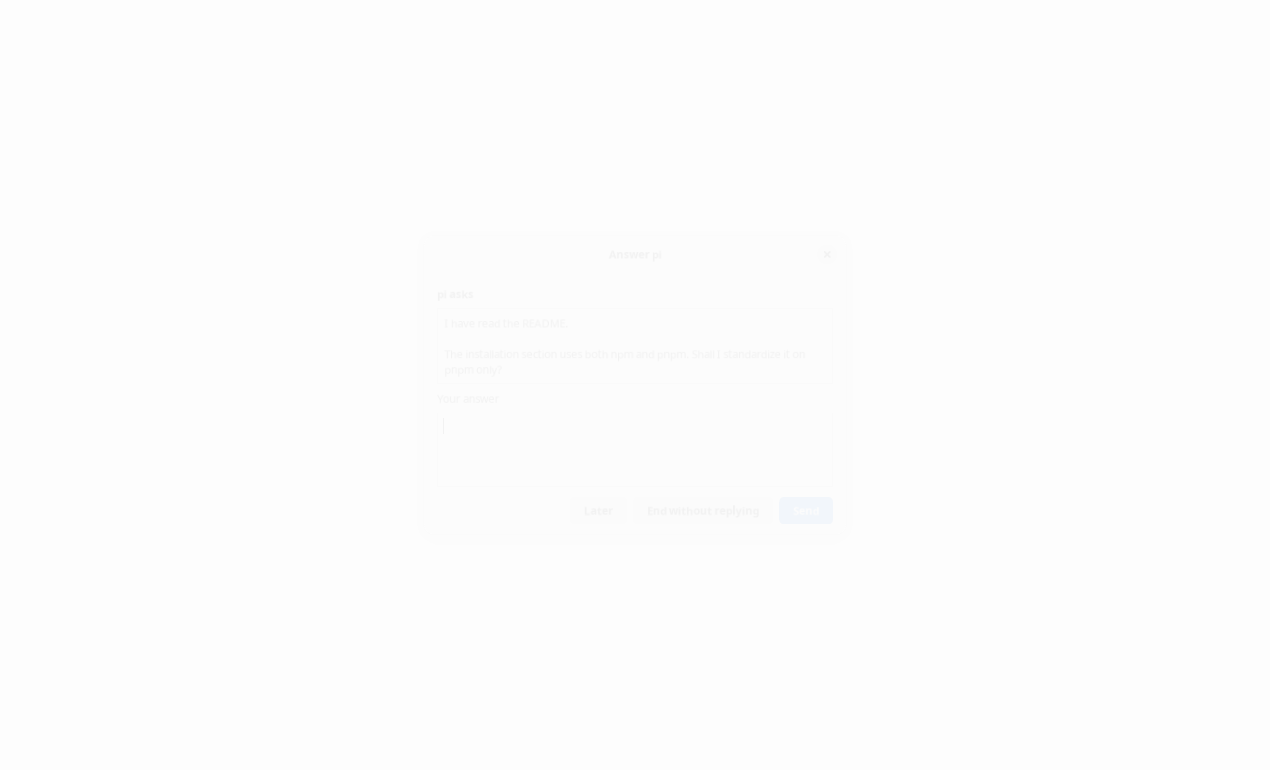

The Answer pi dialog with the question of pi about the README, an answer box, and the Later, End without replying, and Send buttons — The Answer pi dialog

Log and control

The card menu also has:

View pi Log: tools, reasoning, answers, your requests and answers, tokens, cost, and the session id for pi --session <id>
Stop pi / Cancel Queue
Remove Assignment and Change Project Folder…

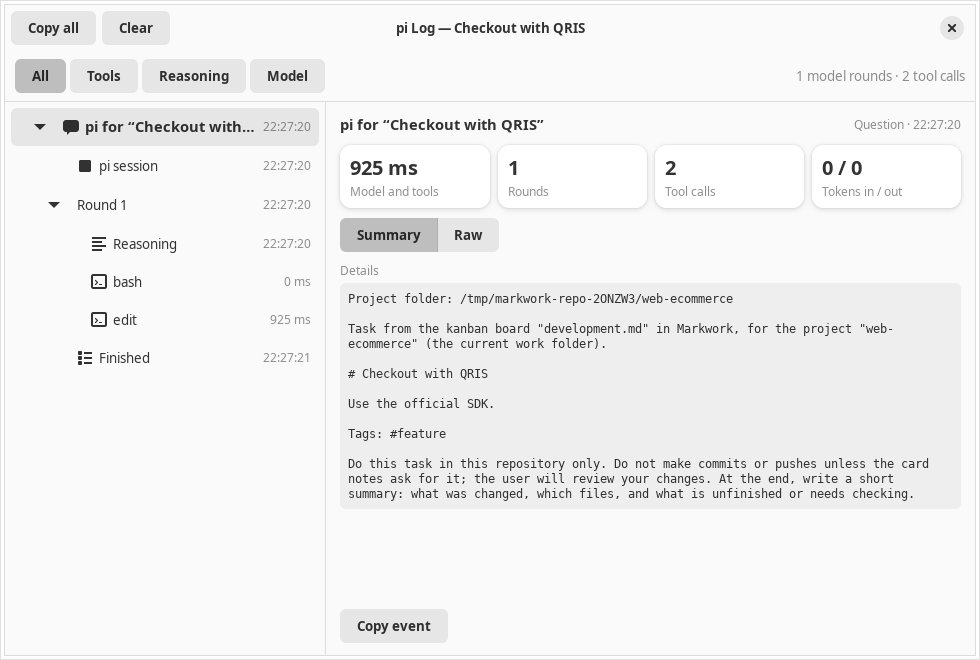

The pi Log window with the prompt sent to pi, the session, the model reasoning, the bash and edit tool calls, and the finished summary — The pi log: the prompt from the card, the reasoning, the tools, and the summary

Access boundaries

Pi writes freely in the project folder, without the Markwork review window.

Review the result in that project repo itself (pi is asked not to commit). Pi does not ask for tool permission by itself; permission requests come from the pi extensions you install, such as permission-gate.

The Markdown only names the name of the project. The name is mapped to a folder that can only be filled in through the choose-folder dialog, so a card or an agent cannot point the harness at an arbitrary folder.
The Markwork work folder, its contents, its parents, the root, and relative paths are rejected as a project folder.
The contents of the notes linked with [[ ]] from the Markwork work folder are sent to pi as part of the prompt (and to the model provider that pi uses). Do not link notes that must not leave. Only Markdown files in the work folder can be linked; dot folders, symlinks, and paths outside the work folder are not included.
Markwork itself does not write to the project folder. Closing the window stops every harness that is running.
